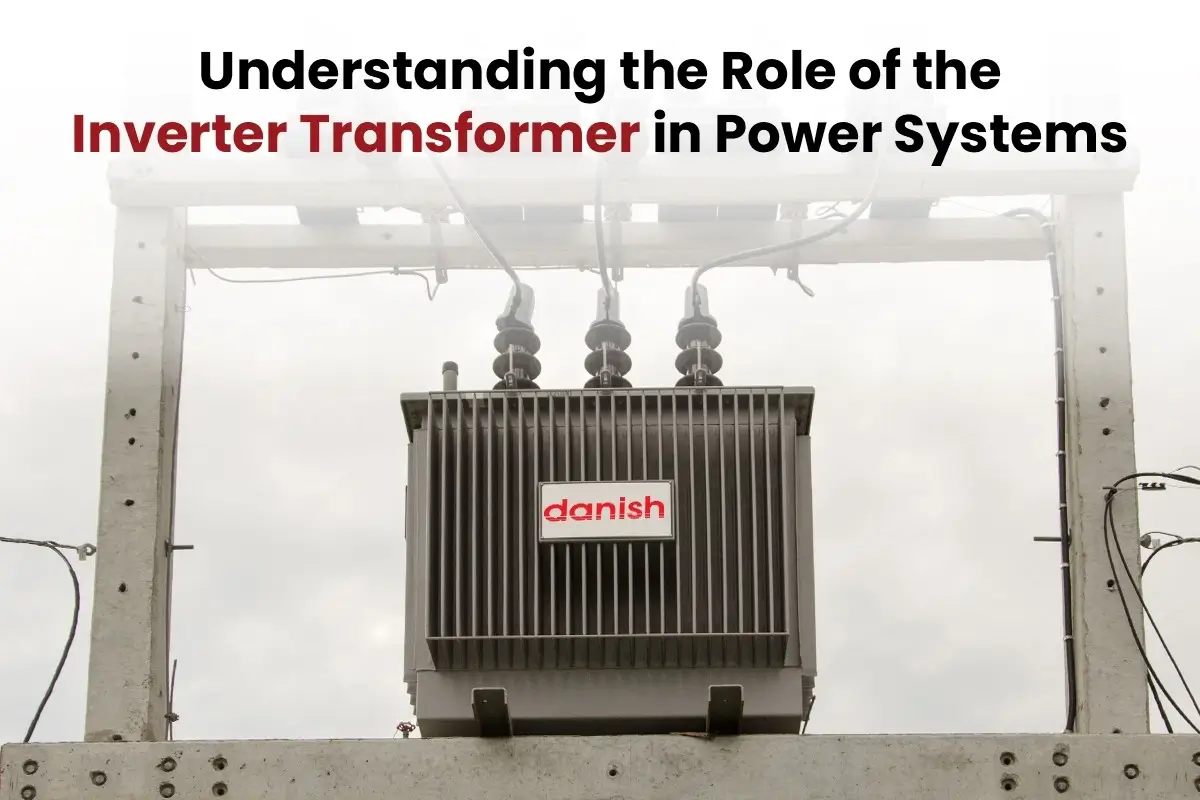

Understanding the Role of the Inverter Transformer in Power Systems

 Efficiency, dependability, and sustainability are more crucial than ever in the current energy environment.  The inverter transformer is one of the key elements in contemporary power systems that makes these characteristics possible.  Inverter transformers are essential for converting and controlling electrical power, whether they are utilized in household inverters, industrial control systems, or solar power installations. Let us examine the definition of an inverter transformer, its operation, its applications, and the variables influencing its cost and functionality in this blog.

What is an Inverter Transformer?

A specialized transformer called an inverter transformer is used to change direct current (DC) into alternating current (AC) in combination with power inverters.  In addition to altering voltage levels, these transformers enhance power quality and aid in circuit isolation and protection. Inverter transformers are usually smaller and function at greater frequencies than conventional transformers. Uninterruptible power supply (UPS), electric cars, renewable energy systems, and other industrial automation systems all depend on them.

The Operation of Inverter Transformer

An electronic switching system is used by a power inverter transformer to convert DC electricity—usually from a battery or solar panel—into AC power.  For safety and efficiency, the inverter transformer is essential for stepping the voltage up or down and isolating various system components.

•         The inverter receives DC electricity.
•         Using switching components, the inverter transforms DC into high-frequency AC.
•         When necessary, the inverter transformer steps up or steps down the voltage.
•         After filtering, the AC power is sent to the grid or load.

These transformers may be made lighter and smaller than conventional power transformers without sacrificing performance since they run at high frequencies.

Types of Inverter Transformers

Different kinds of inverter transformers are needed for different uses. Among the most prevalent kinds are:

•         Step-up Inverter Transformers: These are frequently seen in solar power systems and are used to increase voltage.
•         Step-down Inverter Transformers: These are utilized in industrial control systems and UPSs when lowering voltage is necessary.
•         Copper Transformer Inverter: These are used in high-efficiency or high-load systems due to their superior conductivity and thermal performance.
•         Toroidal Inverter Transformers: Often used in audio equipment and small-scale inverters, these transformers are compact and efficient.

Uses for Inverter Transformer

Inverter transformers are useful and necessary in a variety of fields, such as:

•         Renewable Energy Systems: These are particularly solar ones, transform and control electricity for use in homes or on the grid.
•         Electric vehicles (EVs): For motor control and onboard charging systems.
•         Industrial Automation: Providing motors and drives with clean, controlled AC electricity is known as industrial automation.
•         Telecommunications: Ensuring a steady supply of electricity.
•         Residential Inverters: Home backup systems use residential inverters to supply electricity during blackouts.

A power inverter transformer is used whenever DC to AC conversion and voltage level control are required.

Factors Affecting Inverter Transformer Price

Both the technical characteristics and the intended usage should be considered when assessing the inverter transformer price.  Key pricing drivers include the following:

•         Material Quality: Because copper has better conductivity and less resistance than other metals, copper transformer inverter is often more expensive.
•         Power Rating (KVA): Higher rated transformers are more costly owing to greater capacity and size.
•         Design & Efficiency: Customized or smaller designs, such as toroidal cores, may be more expensive.
•         Frequency Range: More intricate materials and designs are frequently used in high-frequency inverter transformers.
•         Cooling Type: Forced-air or oil-based cooling systems might make transformers more expensive.

Purchasing a high-quality inverter transformer may increase system efficiency and lower maintenance expenses.

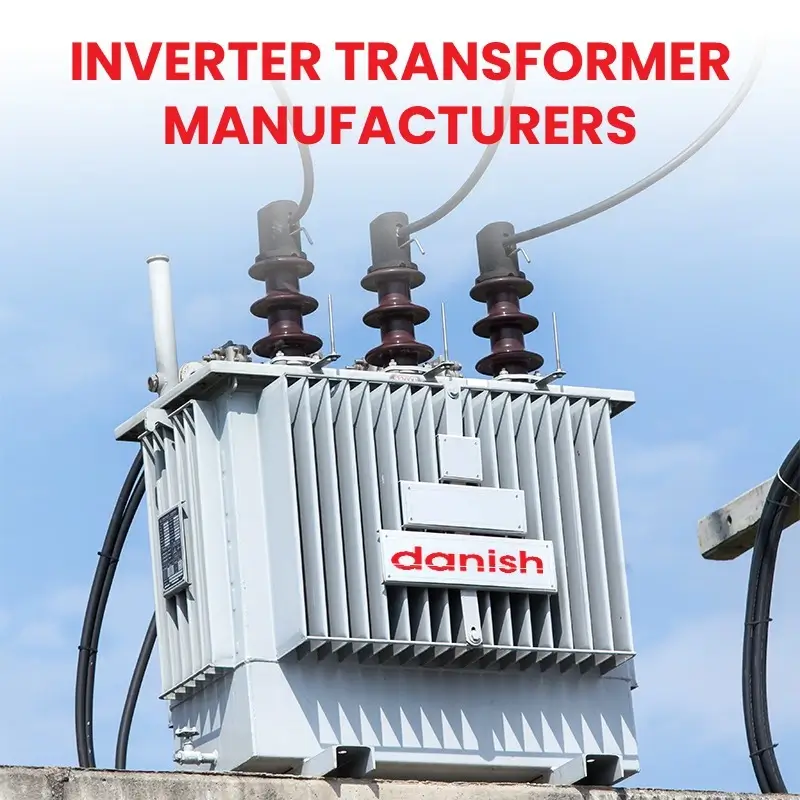

Selecting the Right Inverter Transformer Manufacturers

To guarantee performance, longevity, and safety, it is crucial to choose trustworthy inverter transformer manufacturers.

•         Seek Certification: International standards such as ISO, BIS, and IEC should be met by manufacturers.
•         Verify Experience: Two important determinants of quality are a track record of success and knowledge of power electronics.
•         Evaluate Customization Capabilities: Manufacturers that provide design flexibility are extremely important for applications.
•         Examine Support Services: For large-scale installations in particular, installation instructions, warranty, and after-sales support are essential.

High-performance power inverter transformers made to satisfy contemporary energy demands are available from Danish Electricals. Our products, which range from heavy-duty transformers for industrial operations to small designs for home systems, are constructed with accuracy, robustness, and efficiency.
